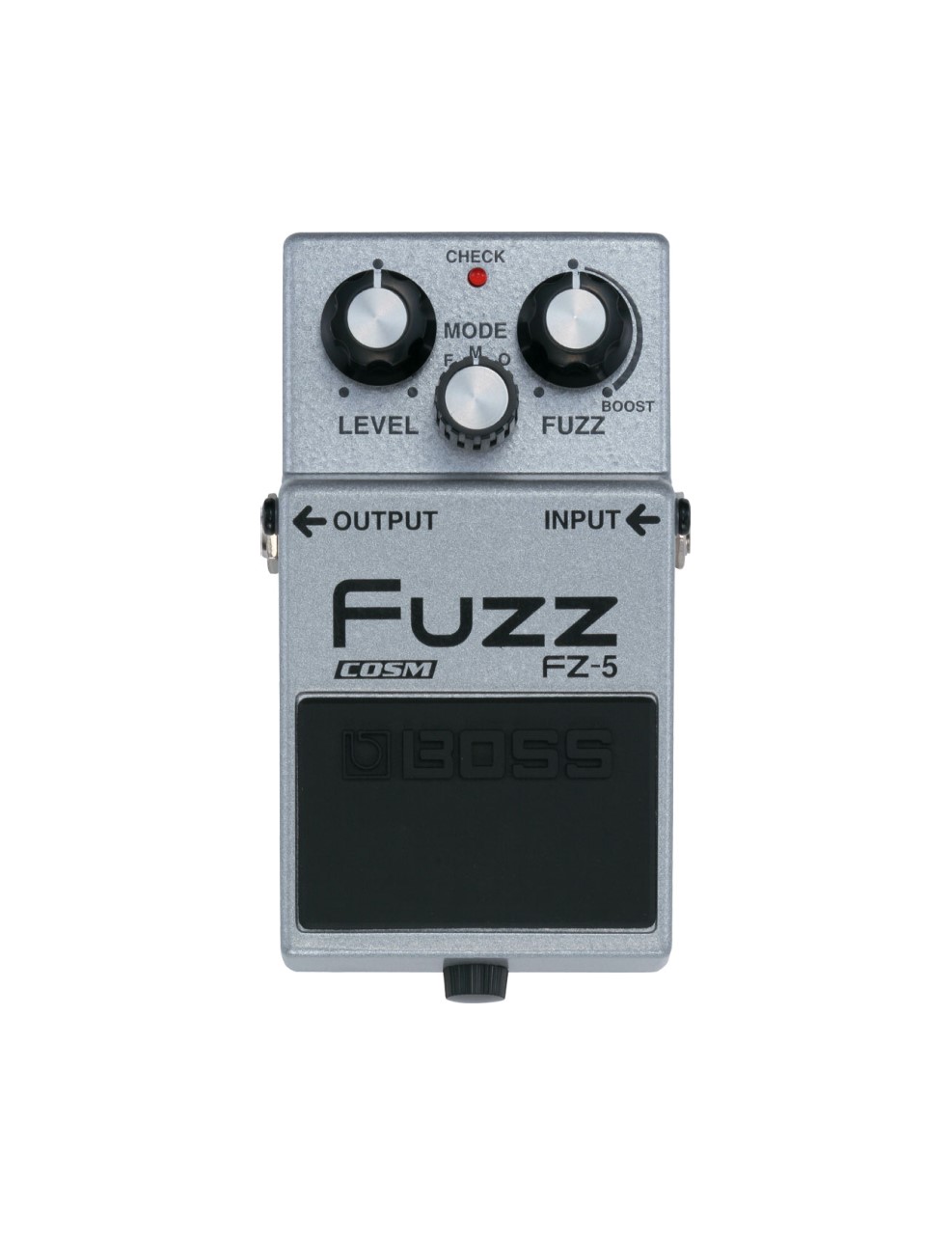

O FZ-5 Fuzz é um moderno pedal compacto para o guitarrista moderno, mas os sons que conseguir obter dele sons puramente “retro”. Recordando um pouco o passado, e olhando para os gloriosos sons rock dos anos 60 e 70, o FZ-5 recria os sons “vintage” Fuzz através da tecnologia COSM. Recupere aqueles sons rugosos dos clássicos Maestro FZ-1A, Fuzz Face e Octavia, e adicione-lhes alguma saturação com o botão Boost do FZ-5. A tecnologia COSM permite aos guitarristas recriar o controle clássico fuzz BOOST para conseguir tonalidades mais agresivas. O FZ-5 é assim a “arma” perfeita para os guitarristas que pretendam acrescentar ao seu setup a clássica “artilharia” fuzz retro.
Caracteristicas:
– Nominal Input Level -20 dBu
– Input Impedance 1 M½
– Nominal Output Level -20 dBu
– Output Impedance 1 k½
– Recommended Load Impedance 10 k½ or greater
– Controls Pedal Switch, LEVEL Knob, FUZZ Knob, MODE Knob
– Indicator CHECK Indicator (Serves also as battery check indicator)
– Connectors INPUT Jack, OUTPUT Jack, AC adaptor Jack
– Power Supply DC 9 V: Dry battery 6F22 (9V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)
– Current Draw 36 mA (DC 9 V)
– Expected battery life under continuous use Carbon: 3 hours, Alkaline: 10 hours
– Dimensions 73 (W) x 129 (D) x 59 (H) mm, 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
– Weight 440 g/ 1 lb (including battery)
– Accessories Owner’s Manual, Leaflets (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), MODE sticker, Dry Battery 006P/9V (6LR61)
– Options AC Adaptor (PSA series).
* The battery that was supplied with the unit is for temporary use – intended primarily for testing its operation.
* We recommend that alkaline battery be used when replacing the battery.
* 0 dBu=0.775 Vrms
